Thin film technology

The technological center MIMENTO offers a special resource dedicated to thin film deposition of metals, oxides and other compound materials. The deposited thicknesses may vary from few nanometers
to a couple of micrometers, depending on the deposited material and the technique used.

Generally, the methods used to deposit thin films are split into two categories: Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD). The distinguishing feature between PVD and CVD techniques is in the vapor. In PVD, the vapor is made up of atoms and molecules that condense on the substrate, and for CVD, the vapor undergoes a chemical reaction on the substrate which results into a thin film.

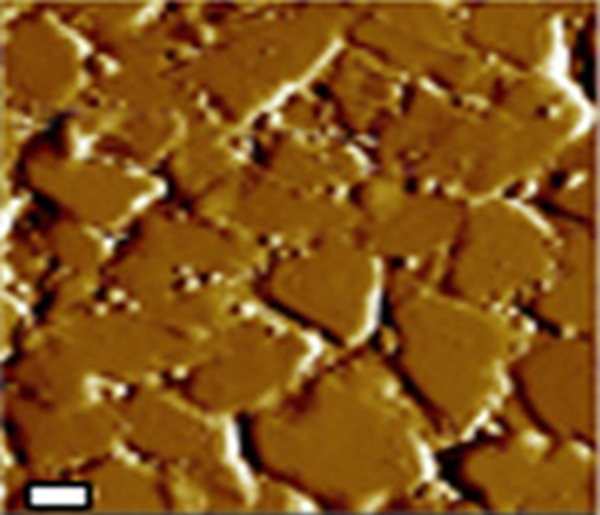

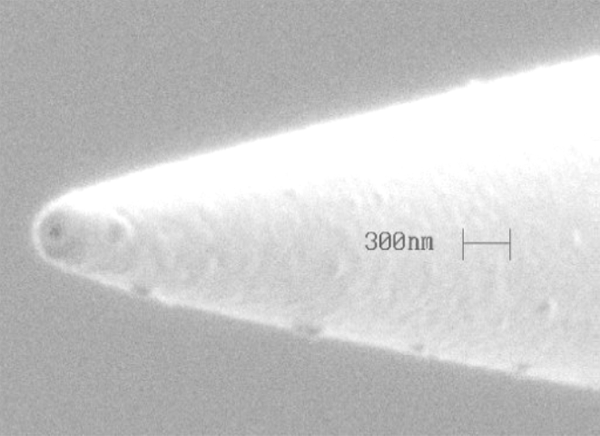

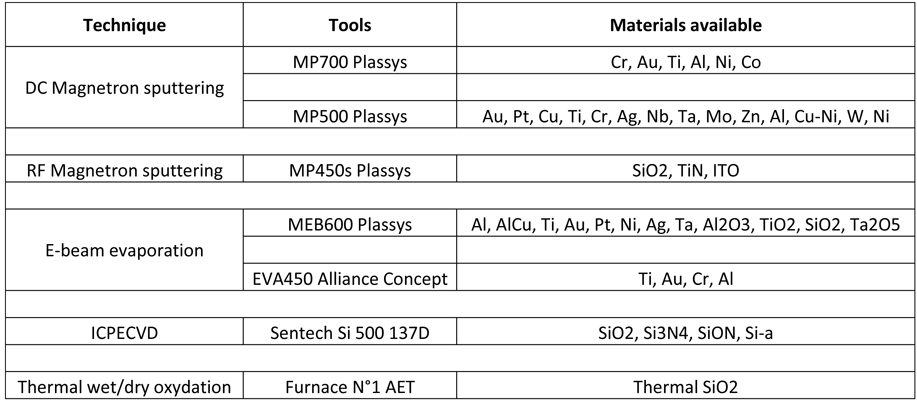

Within FEMTO-ST it exists three deposition techniques for the thin film deposition:

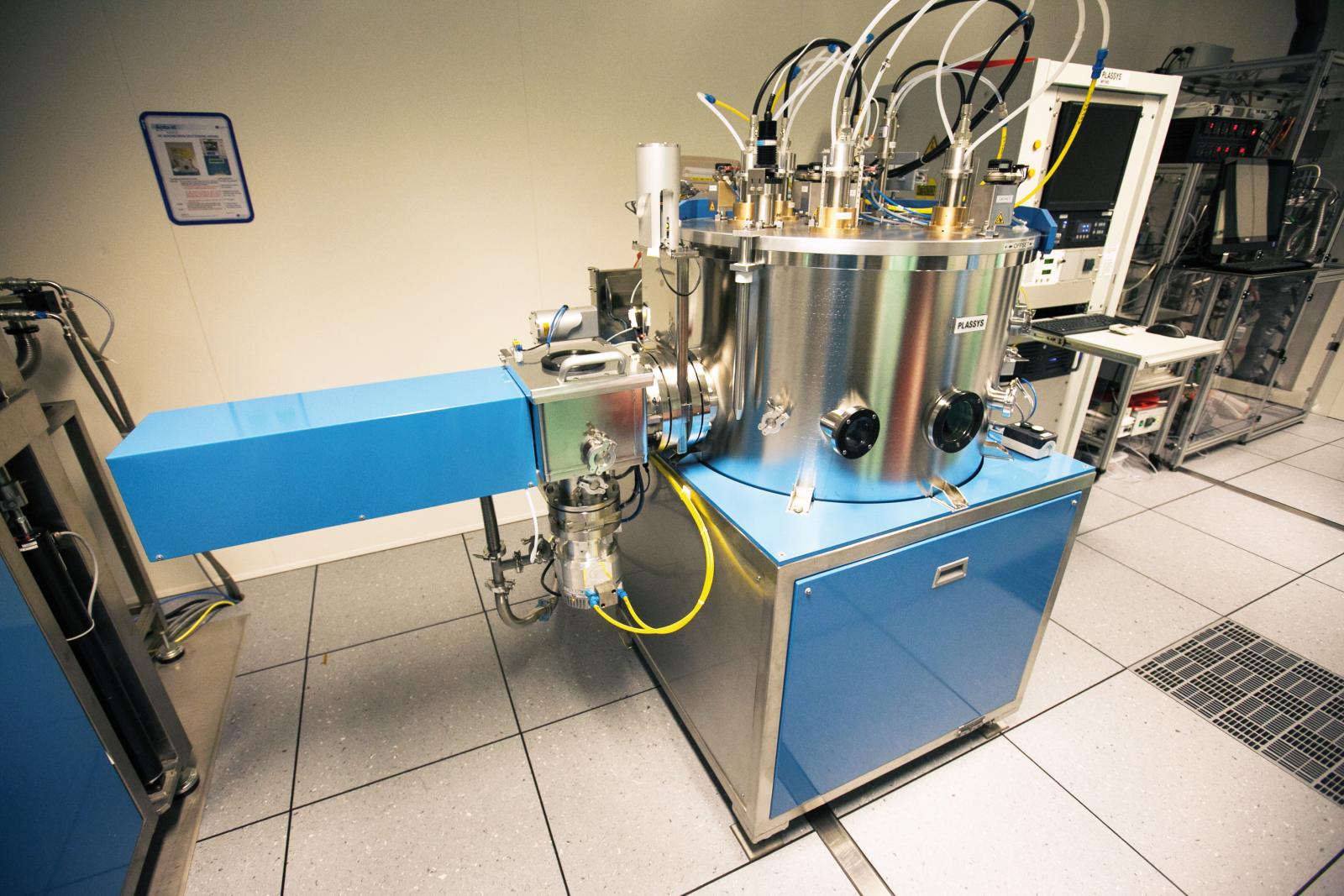

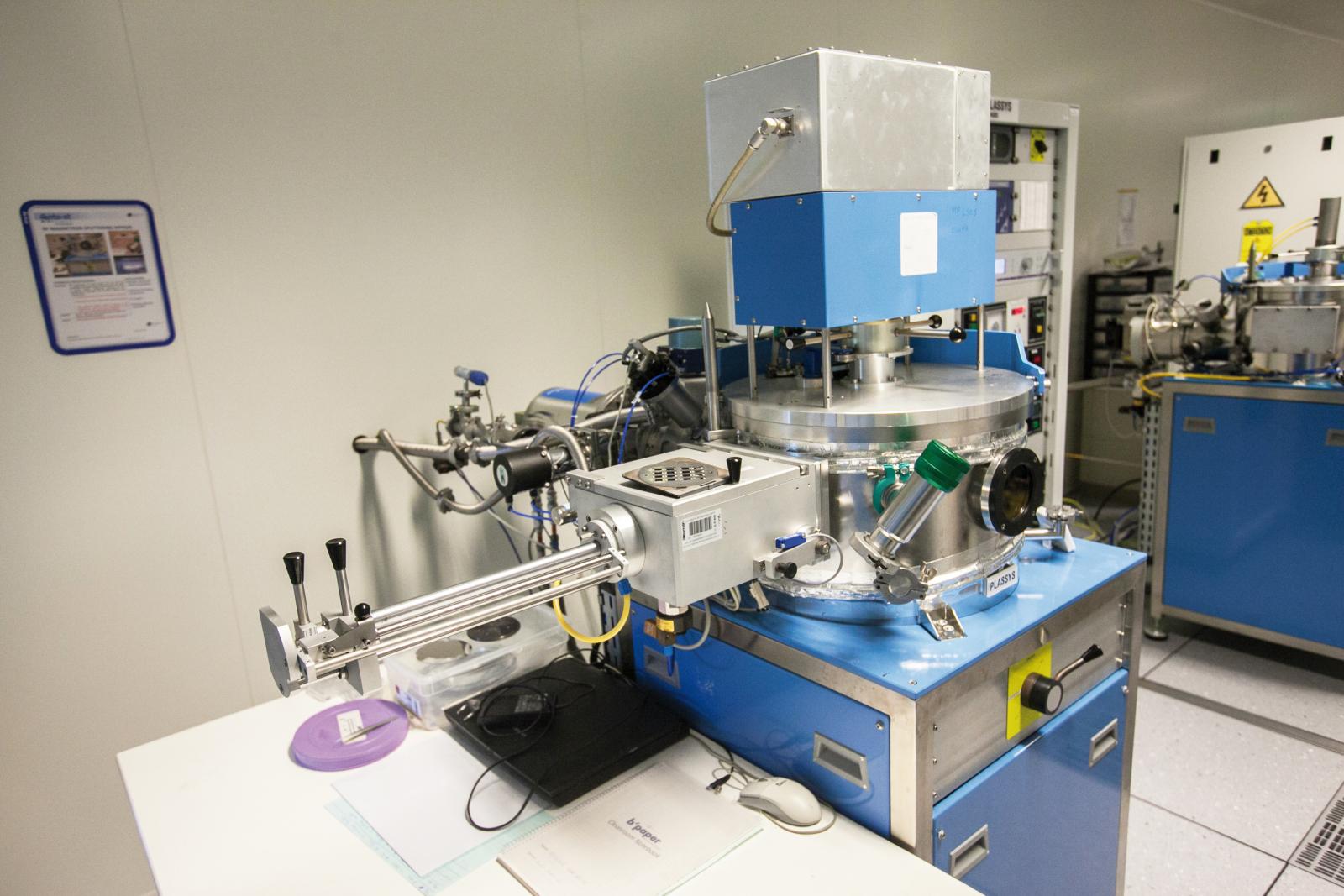

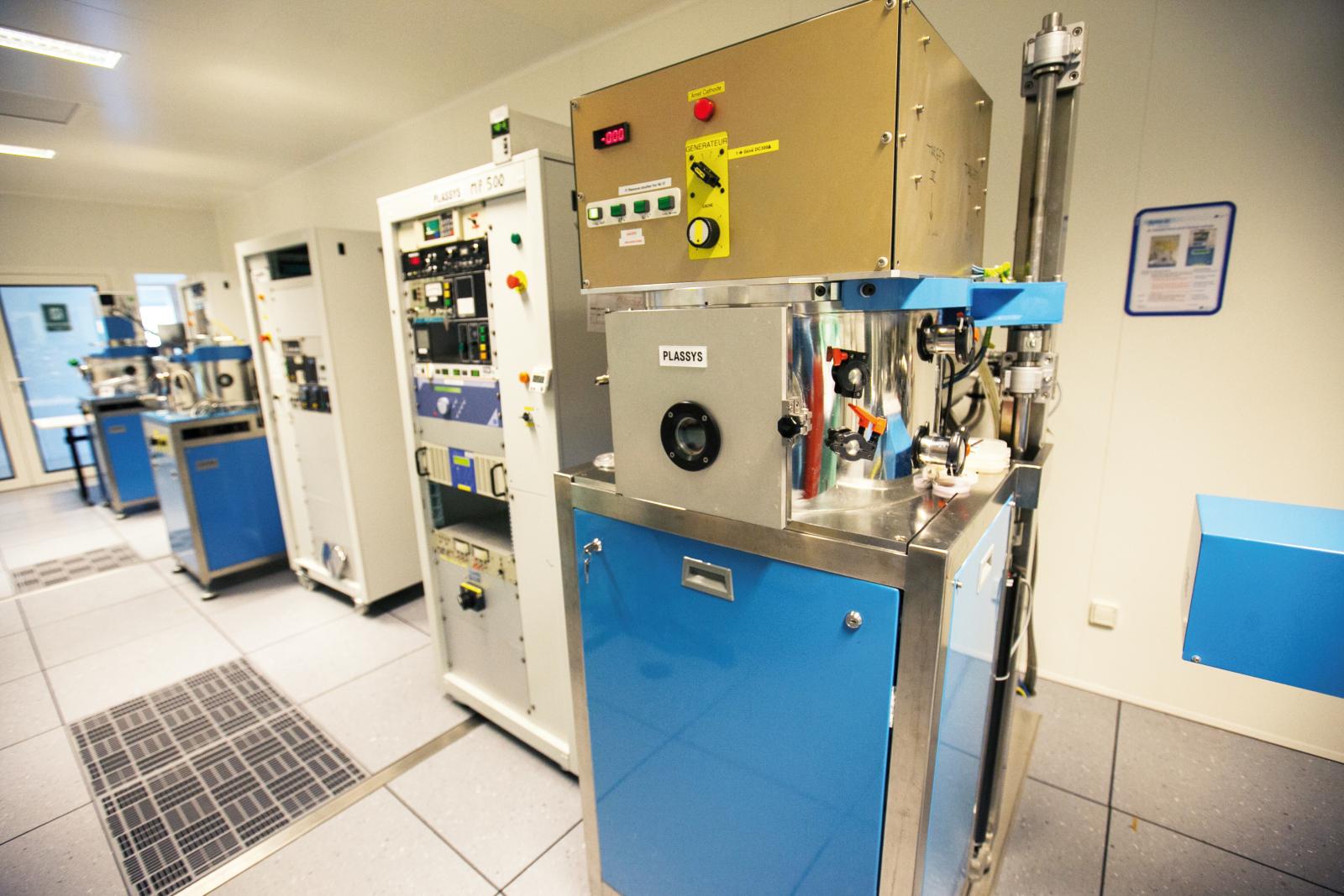

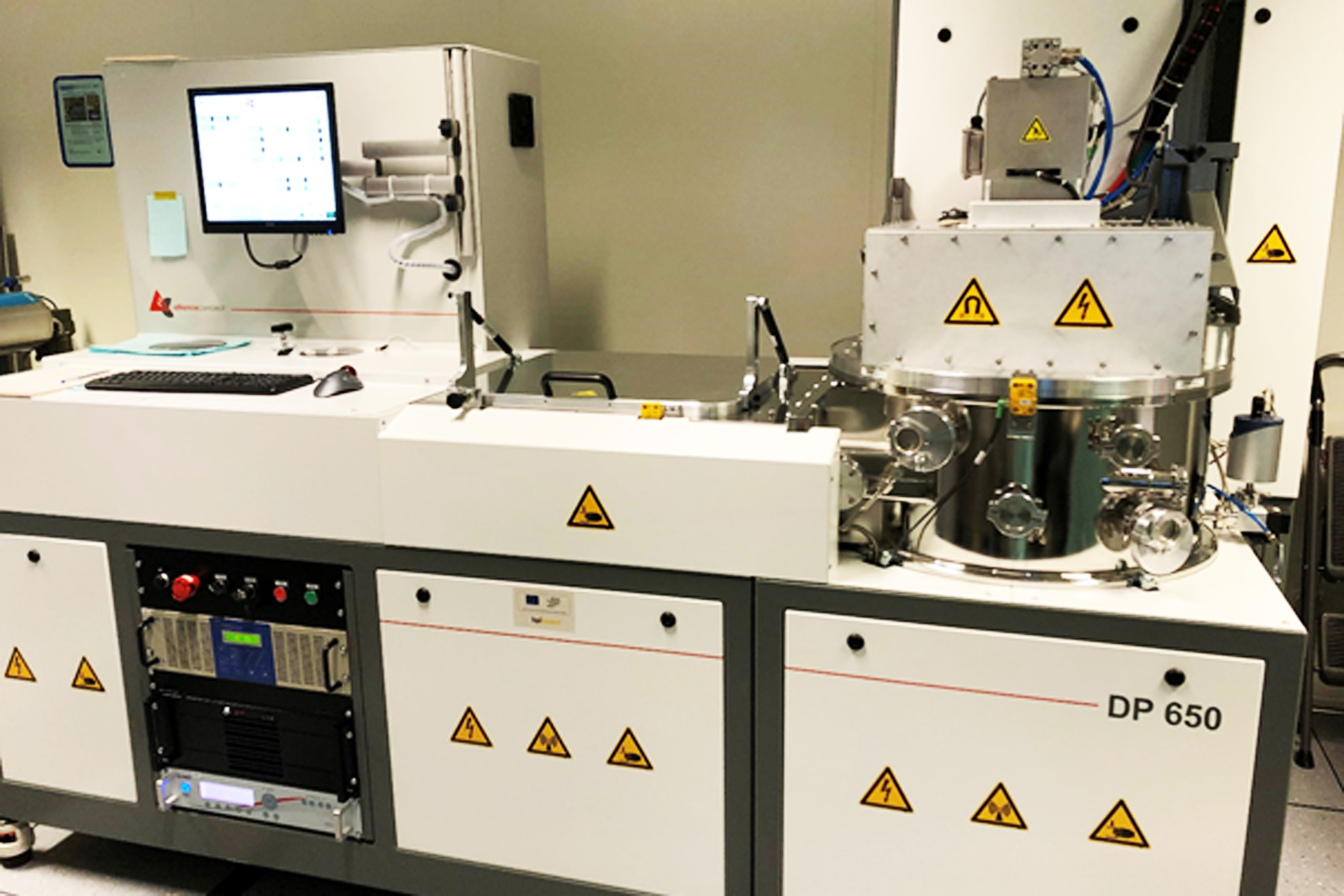

Sputtering (PVD)

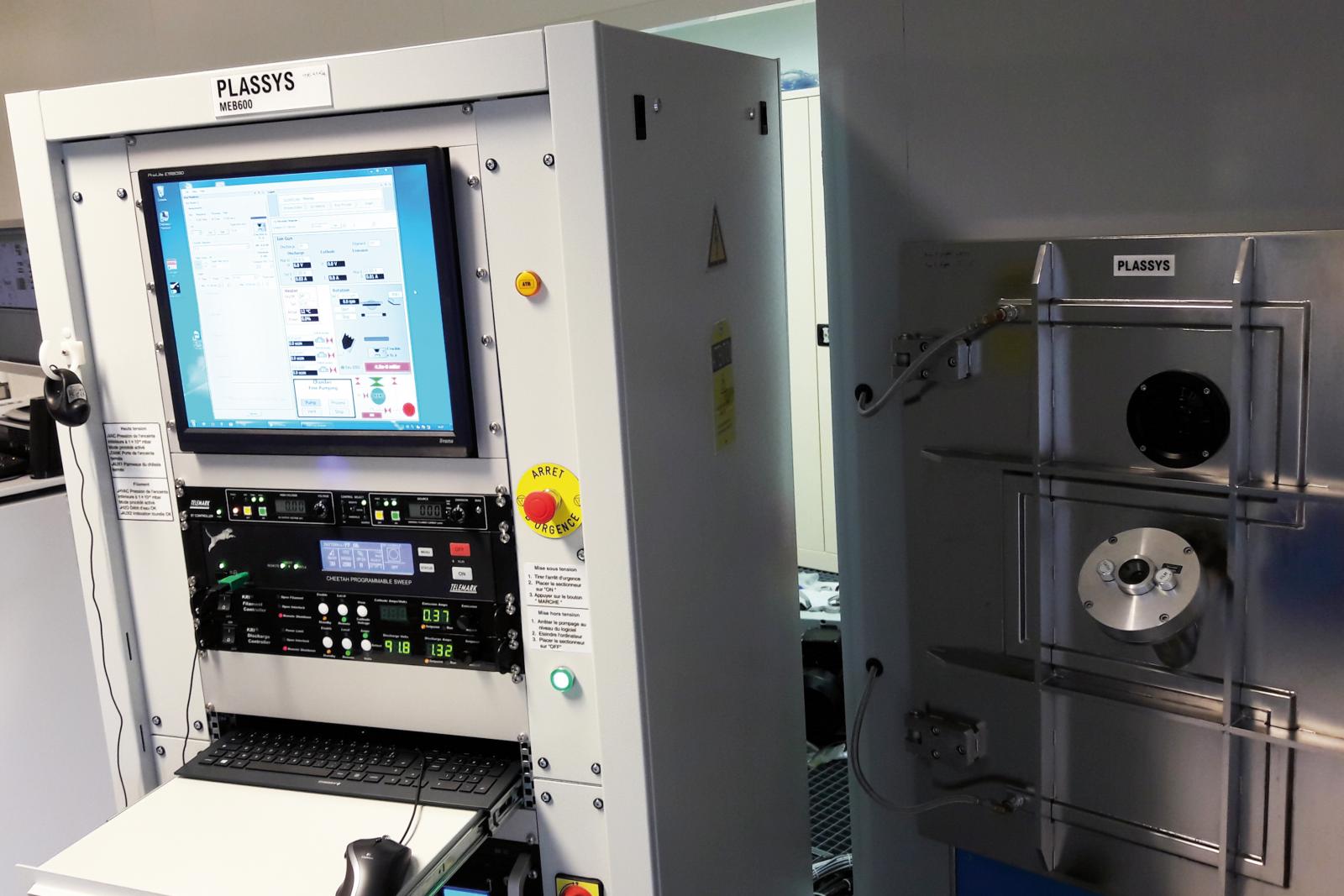

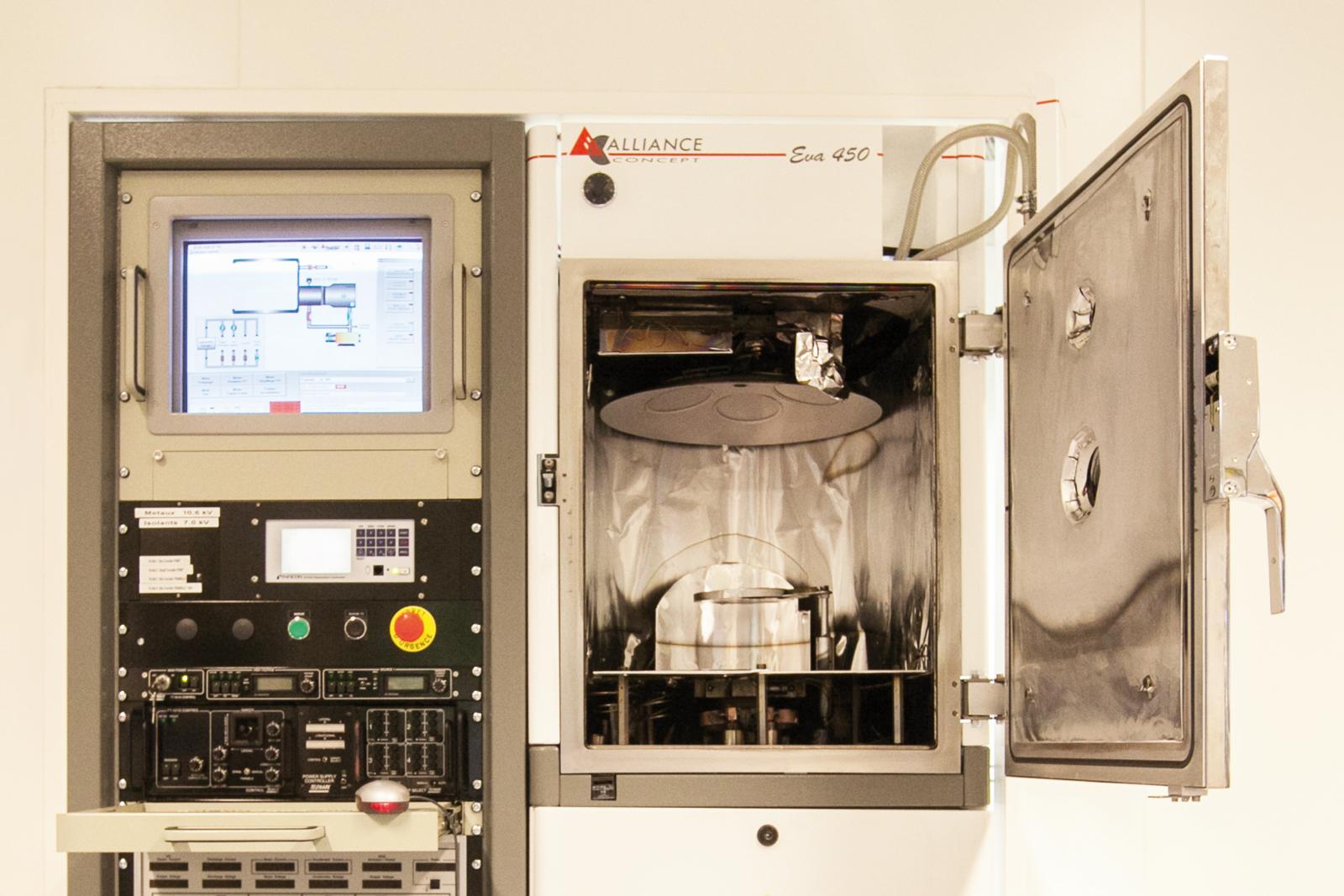

Evaporation (PVD)

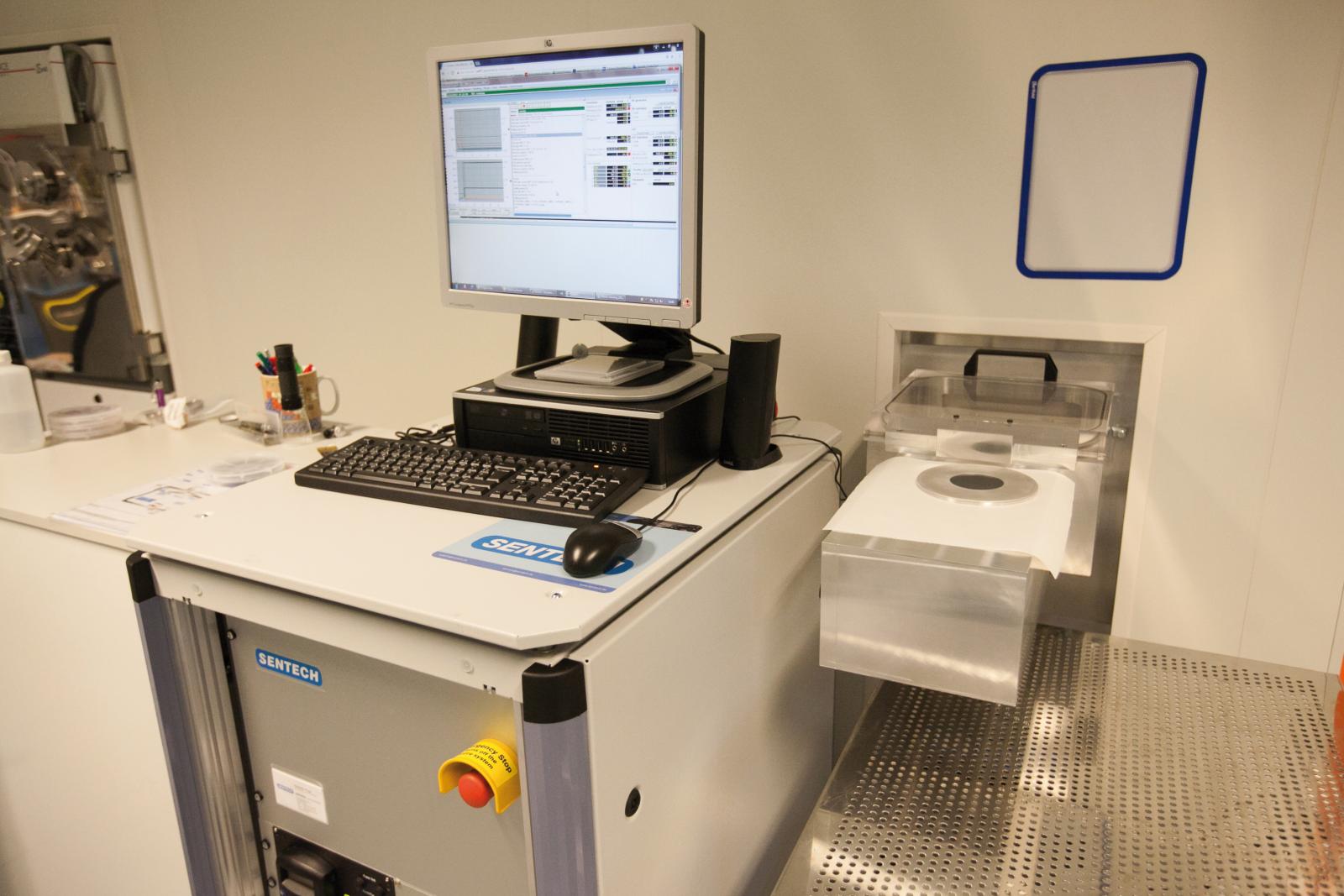

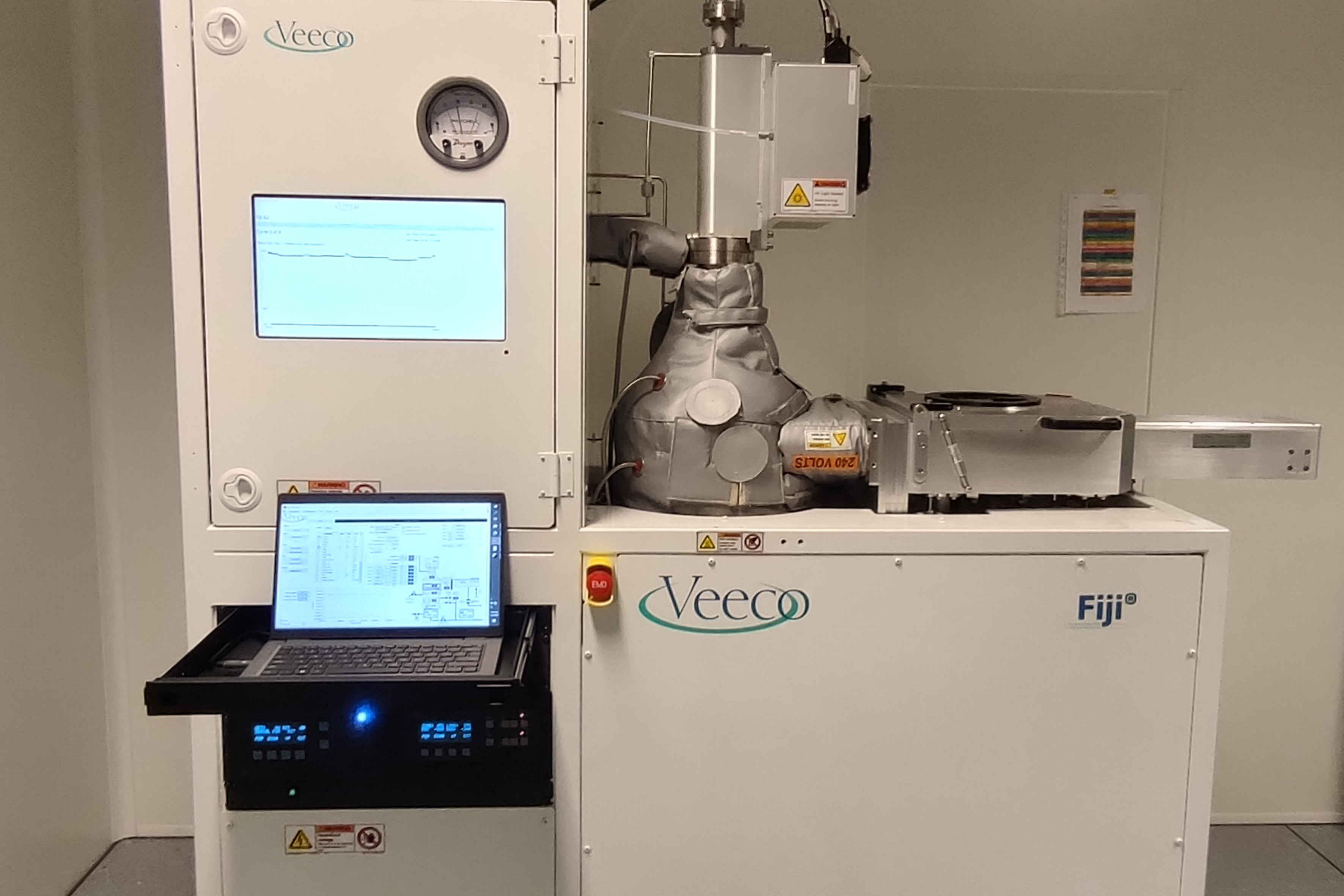

Plasma enhanced CVD

Furthermore, MIMENTO has the possibility to perform thermal treatments. The purpose of thermal treatments are various, in order to affect their optical, electrical and mechanical properties.

Reduce or eliminate the residual stress in thin films
Densify deposited films
Activation/diffusion of dopants
Recrystallization of the samples

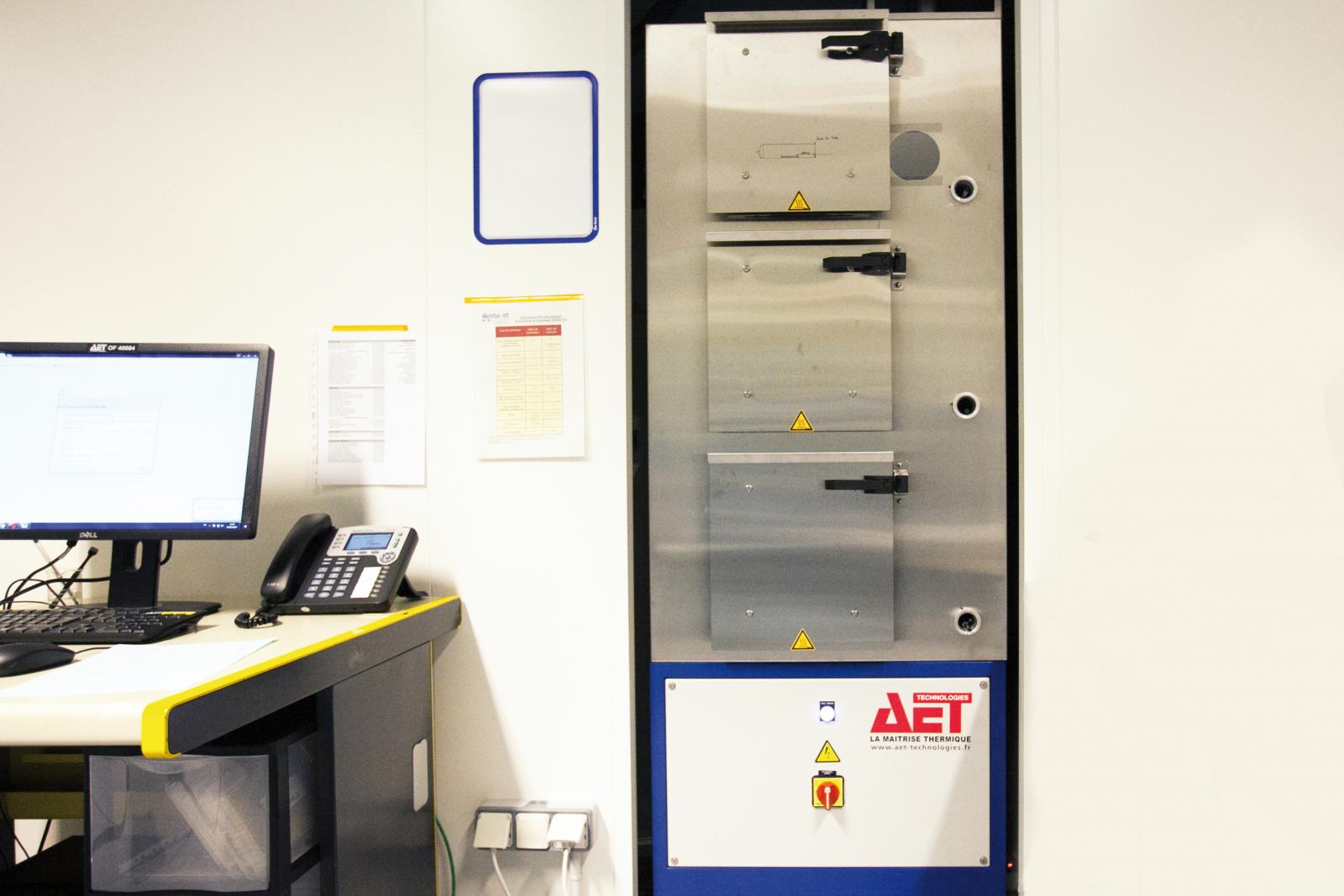

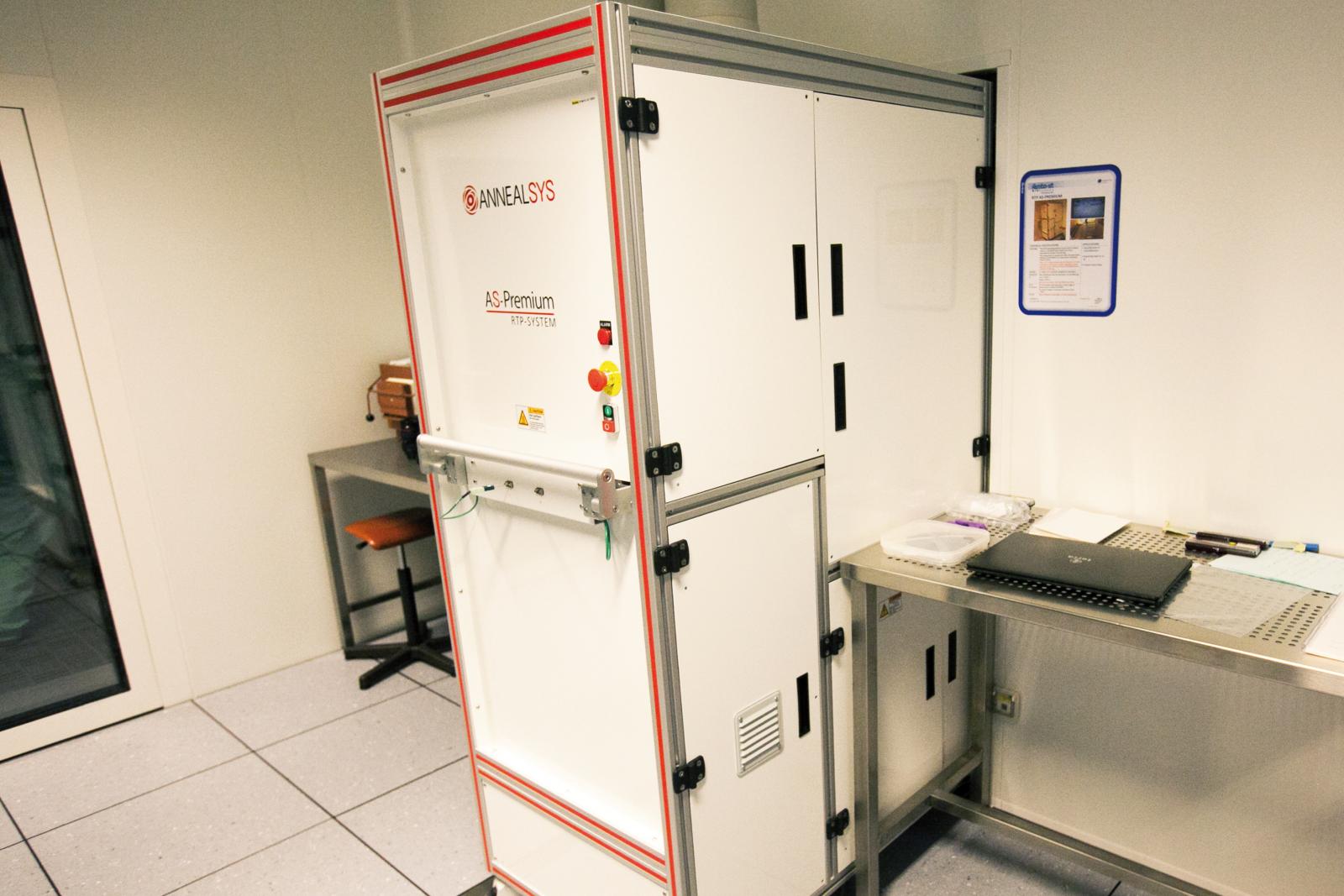

The RTP system is a single wafer processing, performing annealing at elevated temperatures in a short time (the order of few minutes). The conventional furnace is capable to process lot of wafers at a time with thermal cycles of the order of several hours. The multitube system allows to dedicate one of the tube to process wet or dry oxidation.
